10" x 22" Precision Combo Lathe Mill Machines Variable Speed Metal Lathe Mill Drill 110V
$2,800.00
In stock
SKU
DSTSB250V

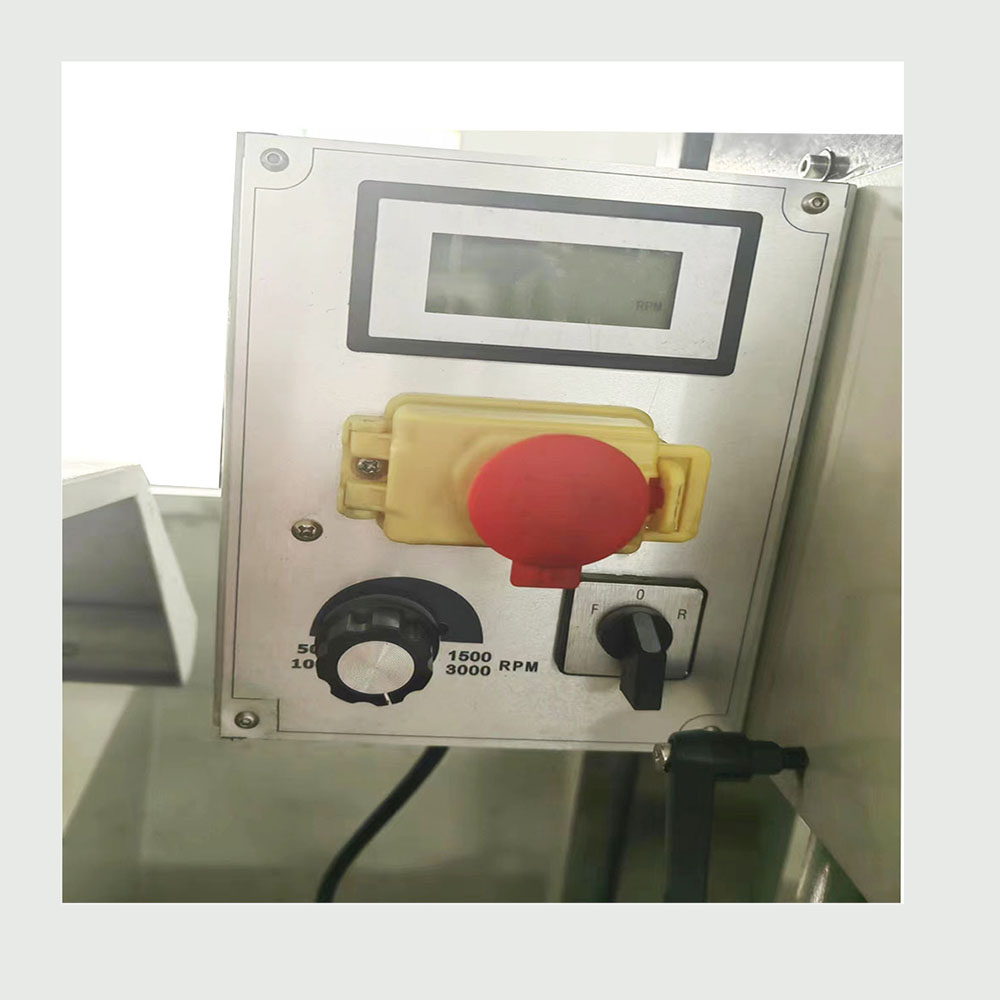

1. MT4 Spindle taper is equipped with a dismantling plate, the spindle is equipped with a speed indicator, forward and reverse switches.
2. Spindle speed range: adjustable speed 50 - 2500 RPM.
3. The max. turning diameter of lathe bed 10", Distance between centers 22", The max. turning diameter of tool post 5.7"
4. Lathe motor 1HP, Drilling and milling head motor-1HP, two-speed switching speed regulation, lifting digital display table, can be switched between metric and imperial.
5. Easy to install, no problems such as unstable center of gravity, etc., sufficient support and protection in place.
6. Power supply: single phase 110V 60Hz.
Guarantee safe & secure checkout
FEATURES:
A. Most popular, widely useful variable speed lathe.
B. V-way bed is hardened and precision ground.
C. Spindle is supported by precision tapered roller bearing.
D. MT4 spindle hole gets more capacity.

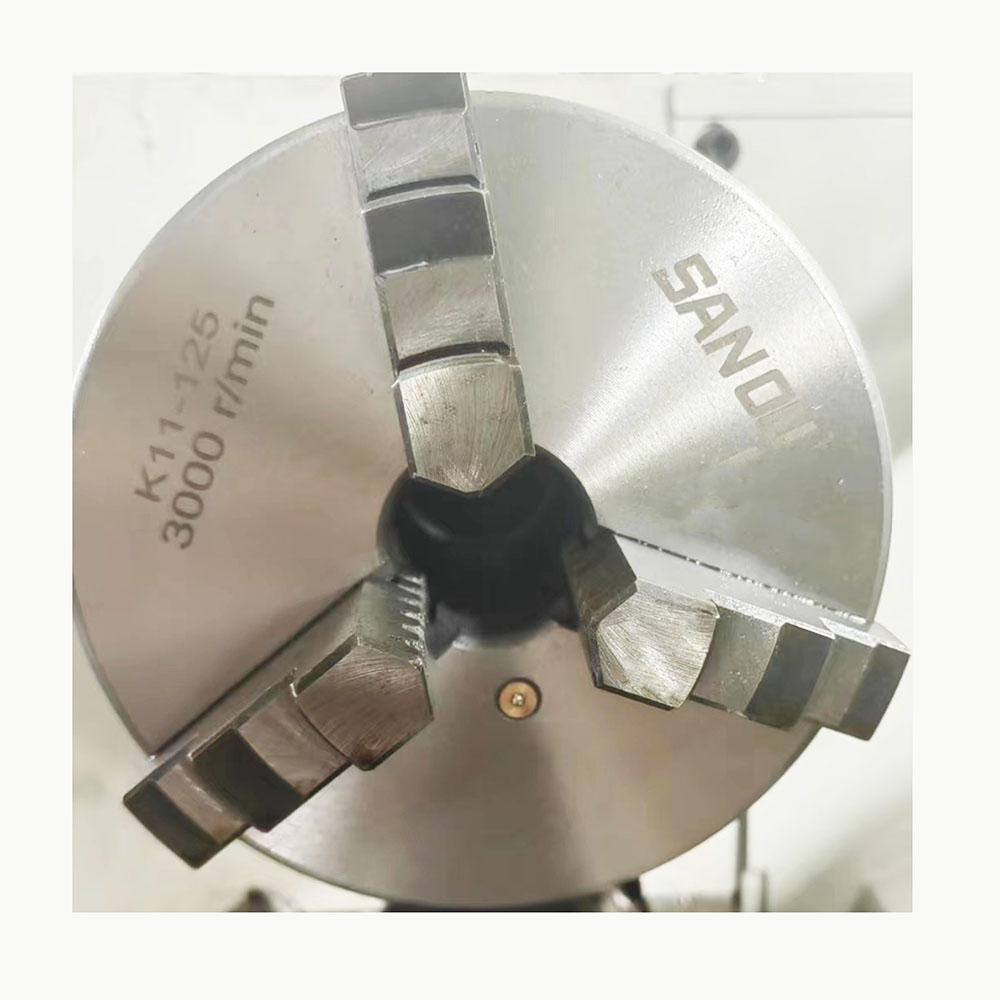

E. High precision chuck.
F. T-slotted cross slide.
G. Power longitudinal feed allows threading.
H. Adjustable gids for slidedways.
I. Top design of gearbox gets more function.
J. Right and left hand threads cutting is available.
K. Tailstock can be off set for turning tapers.
L. Gear mill head gets more torque.
M. Mill head can be tilled ±90°.
N. Tolerance test certificate, test chart included.
Range of Spindle Speeds araole. Variable speed 50-2000rpm.
Provides 3 kinds of feeding speeds.The speed can be adjusted according to your needs.

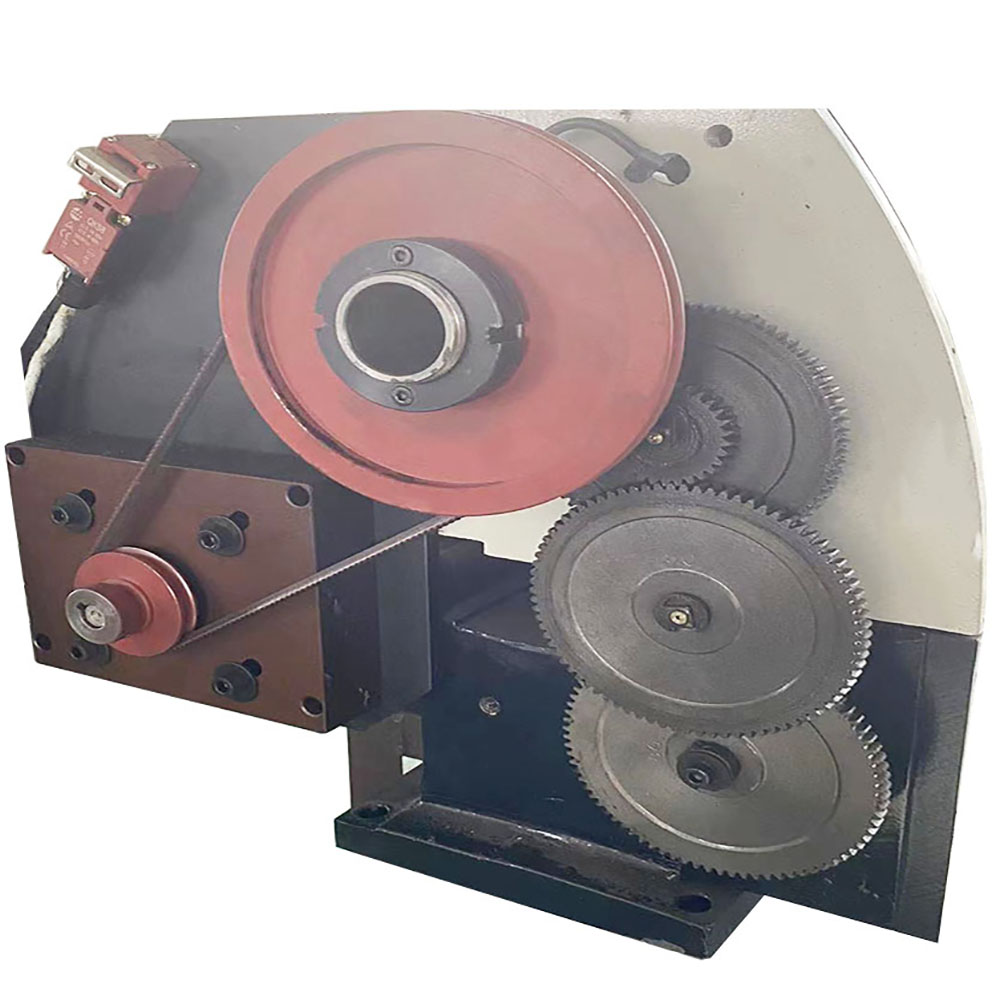

Gearbox provides both right and left hand threads cutting.
| Model | DSTSB250V |
| Distance Between Centers | 22" |
| Swing over bed | 10" |
| Swing over cross slide | 5.7" |
| Width of bed | 5-5/16" |
| Taper of spindle bore | MT4 |
| Spindle bore | 1.02" |
| Number of spindle speed | variable |
| Range of spindle speeds | 50-2500rpm |
| Range of longitudinal feeds | 0.0025" ~ 0.015" |
| Range of inch threads | 8-56TPI |
| Range of metric threads | 0.4 - 3.5mm |
| Maximum Tailstock Spindle Travel | 2.75" |
| Maximum Cross Slide Travel | 5-1/2" |
| Lathe Motor | 1HP |
| Tailstock Taper | MT2 |
| MILL & DRILL | |
| Taper of spindle | R8 |
| Spindle stroke | 2" |
| Spindle speeds | 100 - 2250rpm |
| Max. distance spindle to table | 11-1/64" |
| Max. distance spindle to column | 6-11/16" |
| Mill Motor | 1HP |
| Packing Size | 56" x 28" x 27" |
| Net weight | 505LBS |
