Electric Hydraulic Scissor 6600lb Lift Table 112" x 39" Large Area Table Size 39.4" Lifting Low-Profile Platform With Remote Control 110V
$3,980.00
In stock
SKU
DSTSYY3001
1. Electric Scissor Lift Table Size: 112-3/16" x 39-3/8".
2. Electric Lift Platform Table with 6600 lb Capacity.
3. Portable Scissor Lift Table 3HP Motor Standard 110V/60HZ.
4. Electric lifting to working height (4-1/8" to 34-1/4"), convenient and labor-saving.
5. Stable and durable platform for handling and loading goods.
Guarantee safe & secure checkout
The Bolton Tools Industrial Strength Hydraulic Electric Lift Table features AC powered key-operated double hydraulic cylinder, vertical scissor table which can lift your cargo up to 6600lb.
Feature：
- Time-saving & Increased Productivity: Electric hydraulic lift tables increase operational efficiency, allowing workers to lift and move heavy objects faster and more safely.
- Improved Worker Safety & Ergonomics: Reduces manual lifting risks and minimizes worker fatigue by adjusting platform heights to ideal working levels.
- Heavy-duty Performance: Suitable for heavy-duty lifting, the table can handle significant weight capacities, making it a reliable tool in demanding industrial environments.
- Low Maintenance, Long Lifespan: Built with quality materials and a durable hydraulic system, this lift table ensures minimal maintenance and long-term reliability.
- Variety of Applications：From warehouses to medical facilities. The lift table’s adjustable height feature makes it suitable for a variety of applications across different industries, offering flexibility in both horizontal and vertical operations. It can be used indoor and outdoor situation, let you lift the goods much more efficient.
-
Safety Standards: This Hydraulic Lift Table Meet European NORM and ANSI/ASME safety standards, suitable for both USA and European market.
-
Safety Protection Frame: Table Frame can protect the operator away from hurt when accidentally standing under a descending platform.

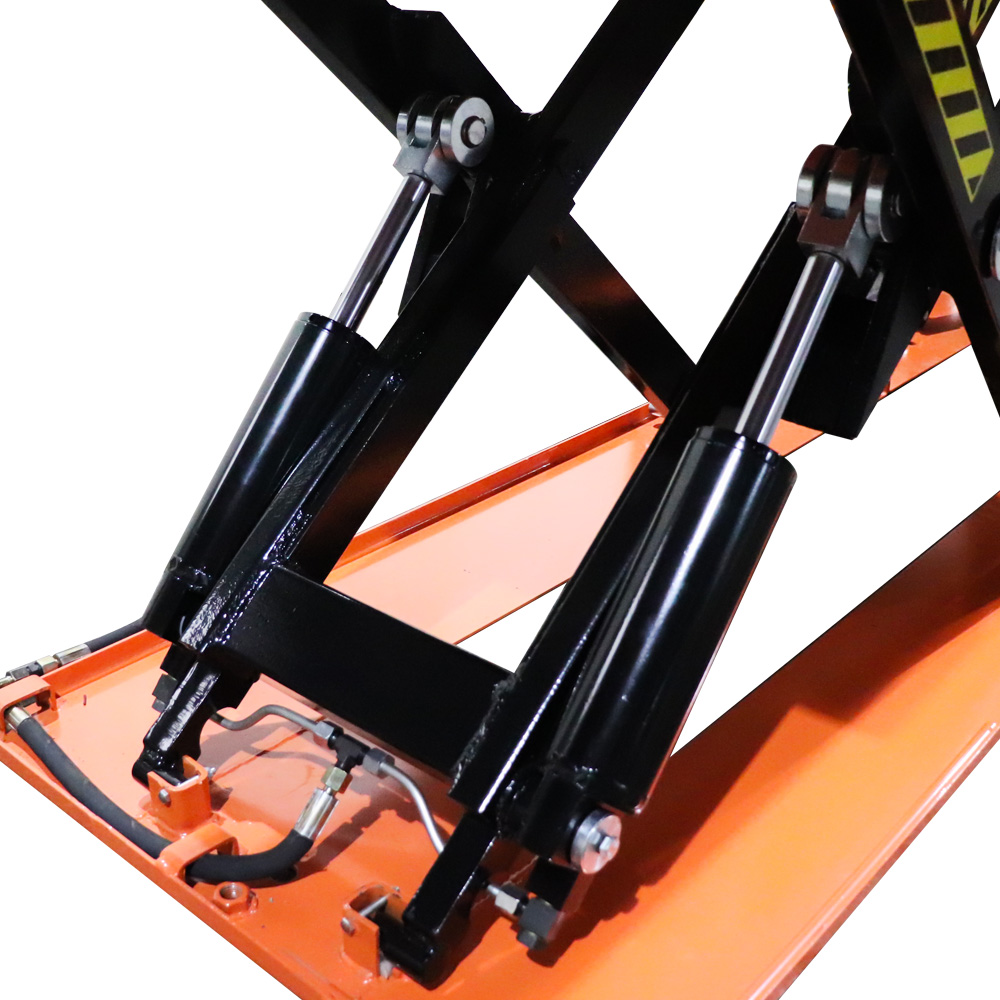

Double Heavy-duty Oil Cylinder
1.The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts; The interlocking parts are equipped with self-lubricating guide rings.
Safety Frame
2. If the platform frame hits an obstacle, it stops immediately. The detachable lifting ring is convenient Countertop installation and access.

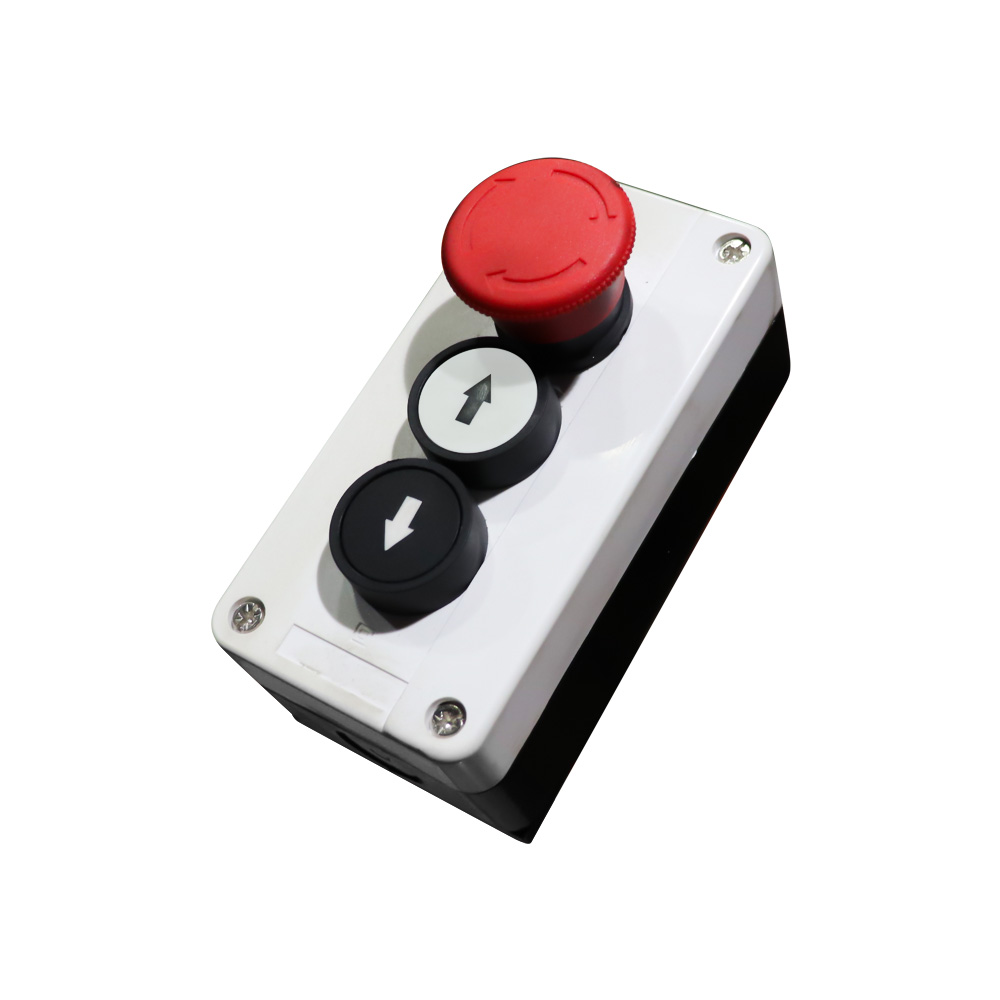

Controller
3、Electrically controlled lifting allows people to work away from dangerous areas

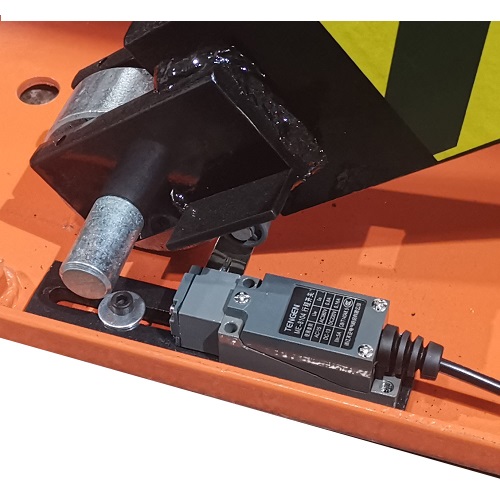

Limiter
4、Prevent excessive lifting
Lifting Holes and Rings
5. The platform surface has lifting holes to facilitate the movement of the platform

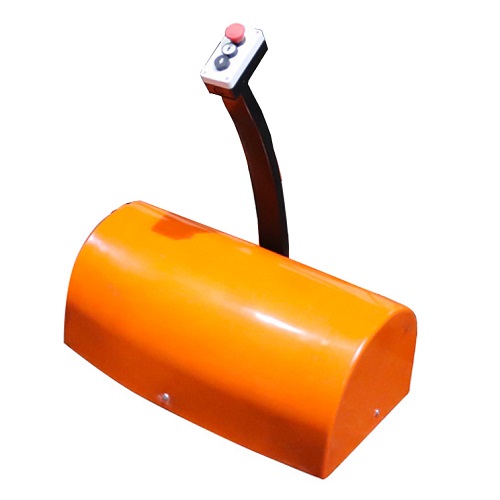

Motor
6. Heavy duty hydraulic motor. After many tests in the experimental environment, to ensure smooth lifting
| Model | DSTSYY3001 |
| Load Capacity: | 6600 lb (3000 kg) |
| Minimum Height: | 4-1/8" (105mm) |
| Maximum Height: | 34-1/4" (870 mm) |
| Motor: | 110V / 60HZ |
| Horse Power: | 3HP / 2.2 KW |
| Table Size: | 112-3/16" x 39-3/8" (2850 x 1000 mm) |
| Scissor Type | Double Scissor |
| Net Weight: | 1731 lb (785 kg) |
| Packing Dimensions: | 114" x 40" x 5" (2900 x 1020 x 115 mm) |
