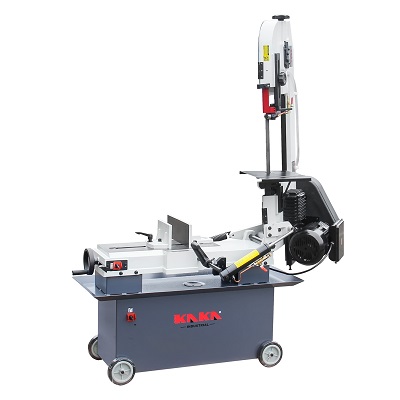

KAKA 7 x 12 Inch Metal Cutting Band Saw – Horizontal Industrial Bandsaw with 4-Speed Pulley Drive BS-712N
$1,799.00
In stock
SKU
KAKA-712N115V230
1. Maximum capability 7". The belt gear has four cutting speeds. The quick clamps can be rotated from 0° to 45°. It be used both vertically and horizontally. High overload capacity motor and drive.
2. This bandsaw is equipped with dual voltage 115V or 230V single phase,motor, pre-wired for 115V. You can also rewire as needed.
3. Switching between horizontal and vertical cutting modes on the same machine is quick and easy, saving time and effort compared to using multiple machines,greatly improving production efficiency.
4. This horizontal/vertical band saw has all the features needed for professional results in metal cutting, allowing users to perform a variety of cuts, from straight and curved cuts to complex designs.
5. Hydraulic cylinders provide precise control over the lowering of the cutting blade,offering smooth and consistent operation, resulting in clean and uniform cuts. Wheels on the base make the machine movable, saving space and making transportation easier.
6. This product is a medium-to-large machine (weighing more than 100lbs), and the lift gate service is a service to help unload the goods, not a freight charge. In order to ensure that the goods are delivered smoothly, I am asking here on behalf of the carrier. It is not a mandatory purchase, please purchase it as needed. If you have an unloading method, please ignore the above information. I hope you can understand.
Guarantee safe & secure checkout
Cutting Ability
- This bandsaw has a dual-voltage 115V or 230V single-phase motor pre-wired for 115V. You can also rewire as needed.
- Two pulley wheels offer four-step speeds for adjustable blade speed. The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately.
- The bandsaw can cut through cylindrical metal workpieces with a diameter of up to 7 inches and is suitable for cutting round bars, pipes, and other cylindrical stock materials. Additionally, the bandsaw can cut rectangular metal workpieces with dimensions of up to 7 inches in width and 12 inches in length, making it ideal for cutting flat or rectangular stock materials such as steel plates or structural beams.
Versatility and Flexibility
- This horizontal/vertical band saw has all the features needed for professional metal cutting results. It allows users to perform a variety of cuts, from straight and curved cuts to complex designs.
- Switching between the same machine's horizontal and vertical cutting modes is quick and easy. It saves time and effort and significantly improves production efficiency compared to multiple machines.
- Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts.
- Wheels on the base make the machine movable, saving space and making transportation more accessible.
Safety
- The band saw features a coolant system and automatically shuts off the settings.
- Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process.
- The band saw blade switches off automatically when the task is complete, and a built-in coolant system protects overheated saw blades for smooth, safe, and continuous operation.
Wide Applications
- The band saw is a versatile tool used in various applications across different industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.
Horizontal and Vertical Metal Cutting Band Saw
- 1. You could operate the band saw vertically.
- 2. This type of band saw allows users to perform a wide range of cuts, from straight and curved cuts to intricate designs. This machine can do it if you need to rip board, resaw thick stock, or create complex shapes.
- 3. Switching between the same machine's horizontal and vertical cutting modes is quick and easy. This saves time and effort and significantly improves production efficiency compared to multiple machines.
- 4. Vertical working position available with optional worktable.
Motor
- This bandsaw has a 1.5 HP motor, dual voltage 115V or 230V single phase, pre-wired for 115V.
- You can also rewire as needed.

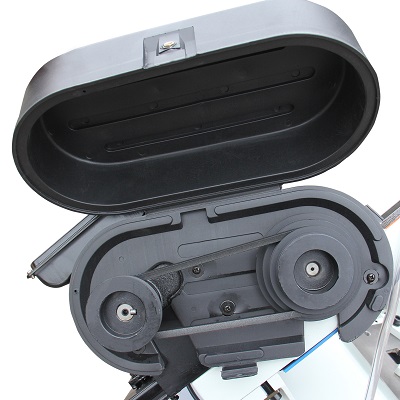

Adjustable Blade Speed
- 4-step blade speeds.
- Steels, bearing bronze 86 small large.
- Medium to high carbon 132 medium-large.
- Steels soft brass 178 large medium.
- Aluminum plastic 260 large small.
Hydraulic Cylinder
- Hydraulic down feed offers maximum control.
- The micro-adjustable feed rate allows for longer blade life, and a unique hold valve makes it easy to position work in your machine's vise.

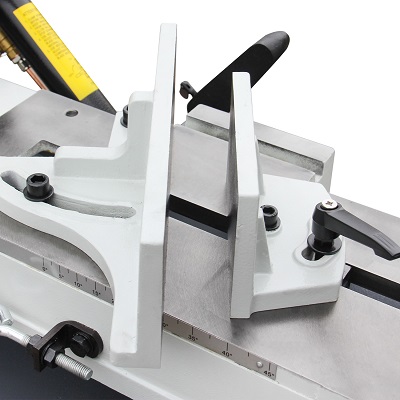

Quick Clamps
- With this rotated clamping plate, you can easily cut at 0°-45° angle.
- However, this is an extent function of these saws.
- If you want precise angle cutting, we recommend choosing Miter saws BS-712R.

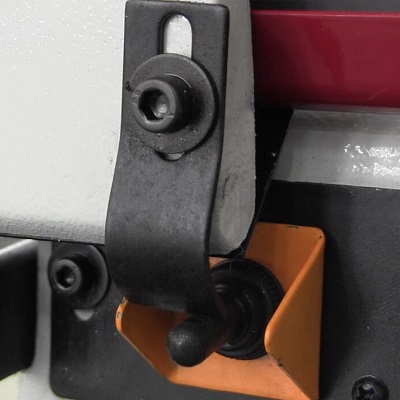

Automatically Shut Off the Setting
- Automatic shut-off settings are designed to prevent accidents and losses during operations, decreasing the possibility of injuries and ensuring safe and continuous operations.
Blade Guides
- Adjustable bearing blade guides help adjust the direction of the saw blade.
- Align the saw blade and increase its lifetime.
Cooling Pump
- Standard cooling system maximum cutting efficiency.
| Model | KAKA-712N115V230 |
| Capacity (Circular @90°) | 178 mm(7") |
| Capacity( Rectangular @90°) | 178 x 305 mm (7"x12") |
| Blade speed @60Hz | 27,41,59,78 MPM |
| Blade speed @50Hz | 22,34,49,64 MPM |
| Blade size(in): | 0.75" x 0.035" x 93" |
| Motor power | 1.1KW 1.5HP (Single Phase) |
| Packing size | 50" x 20" x 45" |
| N.W./G.W. | 320 / 392 lbs |
