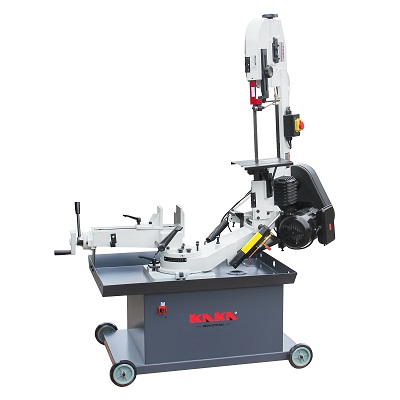

KAKA 7"x12" Swivel Bow Metal Band Saw 1.5HP Horizontal Bandsaw with 45°–90° Swivel Cutting, 115V Solid Steel Design, BS-712R

Add to Wish List
$2,089.00
Be the first to review this product
In stock
SKU
KAKA-712R115V230
Add to Compare
Ask a Question

Ask a Question

  1. Max. cutting 7" round and 7"x8-1/4" Rectangular at 90 degrees.
  2. Single phase motor, could work anywhere.
  3. Two pulley wheels offer 4 step speeds.
  4. Swivel frame max. to 45 degrees to get angle cutting.
  5. Wheels on the stand make the machine movable.
  6. Standard cooling system maximum cutting efficiency.
  7. Adjustable bearing blade guides, help align the saw blade and increase the lifetime of use
  8. This product is a medium-to-large machine (weighing more than 100lbs), and the lift gate service is a service to help unload the goods, not a freight charge. In order to ensure that the goods are delivered smoothly, I am asking here on behalf of the carrier. It is not a mandatory purchase, please purchase it as needed. If you have an unloading method, please ignore the above information. I hope you can understand.

Guarantee safe & secure checkout

KAKA INDUSTRIAL 7"X12" Swivel Bow Metal Band Saw,swiveled between 45° and 90°Solid Design, BS-712R with 1.5HP motor 115V 1PH

  • Max. cutting 7" round and 7"x 8-1/4" Rectangular at 90 degrees
  • Single-phase motors could work anywhere
  • Two pulley wheels offer 4 step speeds
  • Swivel frame max. to 45 degrees to get angle cutting
  • Wheels on the stand make the machine movable
  • Standard cooling system maximum cutting efficiency
  • Adjustable bearing blade guides help align the saw blade and increase its lifetime

Powerful Cutting Ability
  • This bandsaw has a dual-voltage 115V or 230V single-phase motor pre-wired for 115V. You can also rewire as needed.
  • Adjustable blade speed, two pulley wheels offer 4 step speeds.
  • The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately. The bandsaw can cut through cylindrical metal workpieces with a maximum diameter of 7" and is suitable for cutting round bars, pipes, and other cylindrical stock materials.
  • Additionally, the bandsaw can cut rectangular metal workpieces with dimensions of up to 7"x 8-1/4", making it ideal for cutting flat or rectangular stock materials such as steel plates or structural beams.
Versatility and Flexibility
  • This horizontal/vertical band saw has all the features needed for professional metal cutting results. It allows users to perform a variety of cuts, from straight and curved cuts to complex designs. Switching between horizontal and vertical cutting modes on the same machine is quick and easy, saving time and effort compared to using multiple machines and significantly improving production efficiency.
  • The saw bow is rotatable, rotating the frame up to 45 degrees for angled cuts.
  • Wheels on the stand make the machine movable, saving space and making transportation more accessible.
  • Adjustable bearing blade guides help align the saw blade and increase the lifetime of use.
Safety
  • The band saw features a coolant system and an automatic shut-off setting. It also features a heat-treated high-carbon steel blade, brass fittings, ball valves, fully shielded guide bearings, and a full complement of belt and blade guards. The band saw blade switches off automatically when the task is completed, and a built-in coolant system protects overheated saw blades for smooth, safe, and continuous operation.

Wide Applications

  • The band saw is a versatile tool used in various applications across different industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops

Horizontal and Vertical Metal Cutting Band Saw

  • You could operate the band saw vertically.
  • This type of band saw allows users to perform a wide range of cuts, from straight and curved cuts to intricate designs. This machine can do it if you need to rip board, saw thick stock, or create complex shapes.
  • Switching between the same machine's horizontal and vertical cutting modes is quick and easy. That saves time and effort and significantly improves production efficiency compared to multiple machines.
  • Vertical working position available with optional worktable.

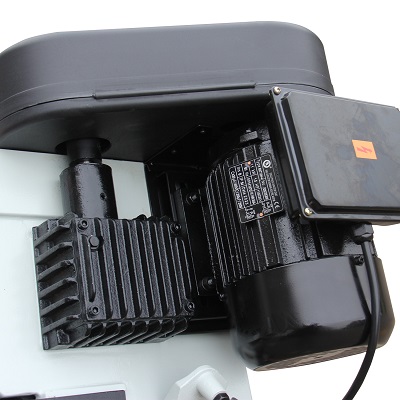

Adjustable Blade Speed

  1. Single-phase motors could work anywhere.
  2. Two pulley wheels offer 4 step speeds.
  3. Steel-bearing bronze has 86 small, the most significant, medium to high carbon, and 132 medium-large.
  4. Steels soft brass 178 large medium.
  5. Aluminum plastic 260 is the most extensive small.

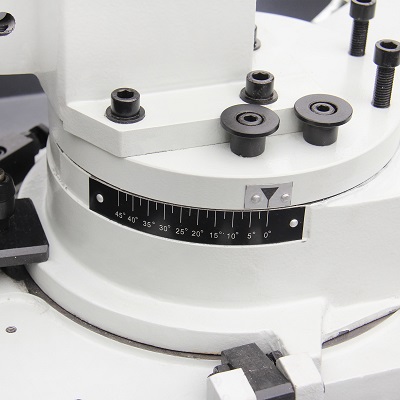

Saw Bow Rotation

  1. Swivel frame max. to 45 degrees to get angle cutting.

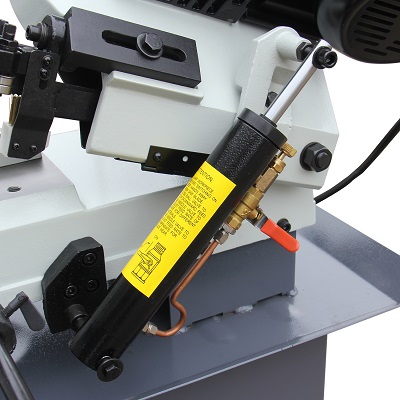

Hydraulic Cylinder

  1. Hydraulic down feed offers maximum control.
  2. The micro-adjustable feed rate allows for longer blade life, and a unique hold valve makes it easy to position work in your machine's vise.

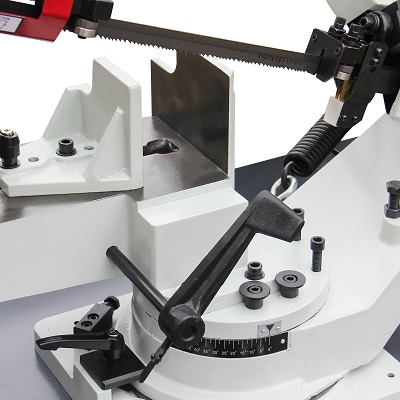

Vice Handle

  1. Fast clamp/release vice handle.

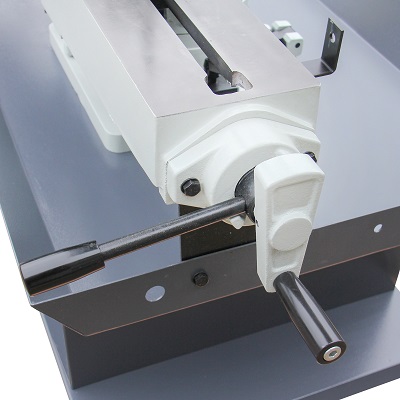

Quick Clamping Vice

  1. The vice provides a firm, reliable grip on the workpiece, ensuring it stays stable during cutting.

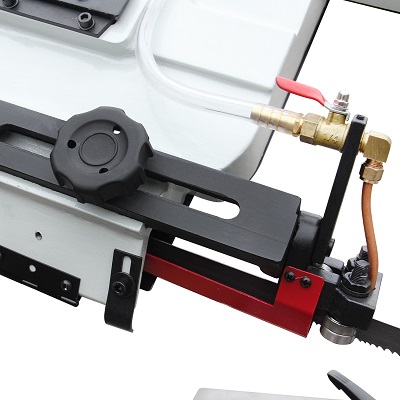

Blade Guides

  1. Adjustable bearing blade guides help align the saw blade and increase its lifetime.

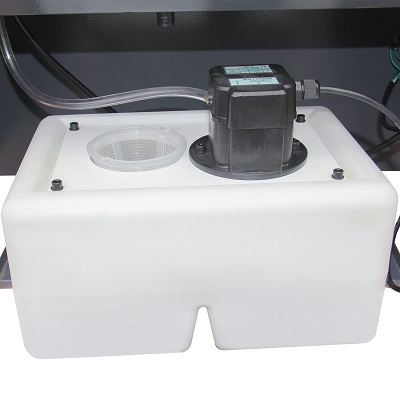

Cooling Pump

  1. Standard cooling system maximum cutting efficiency.
Model KAKA-712R115V230
Capacity Circular @90° 7"
Rectangular: @90° 7" x 8.25"
Circular: @45° 5"
Rectangular: @45° 3.33" x 5.5"
Blade speed: @60Hz 27, 41, 59, 78 MPM
Blade size 0.75" x 0.035" x 93"
Motor power 750W 1HP (3PH),
1.1KW 1.5HP (1PH)
Drive V-belt
voltage  115V or 230V single-phase, pre-wired for 115V
Packing size 51" x 29" x 46"
N.W./G.W(lb). 407 / 525 lbs
